ASUS

PN:90MB1GA0-M0EAY0

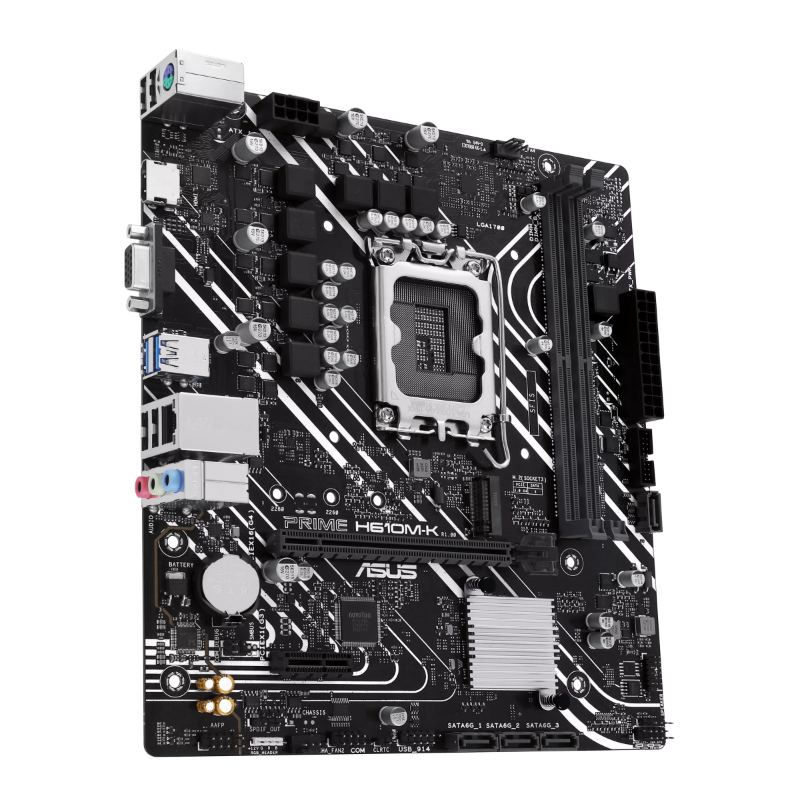

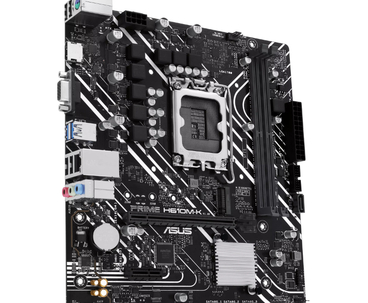

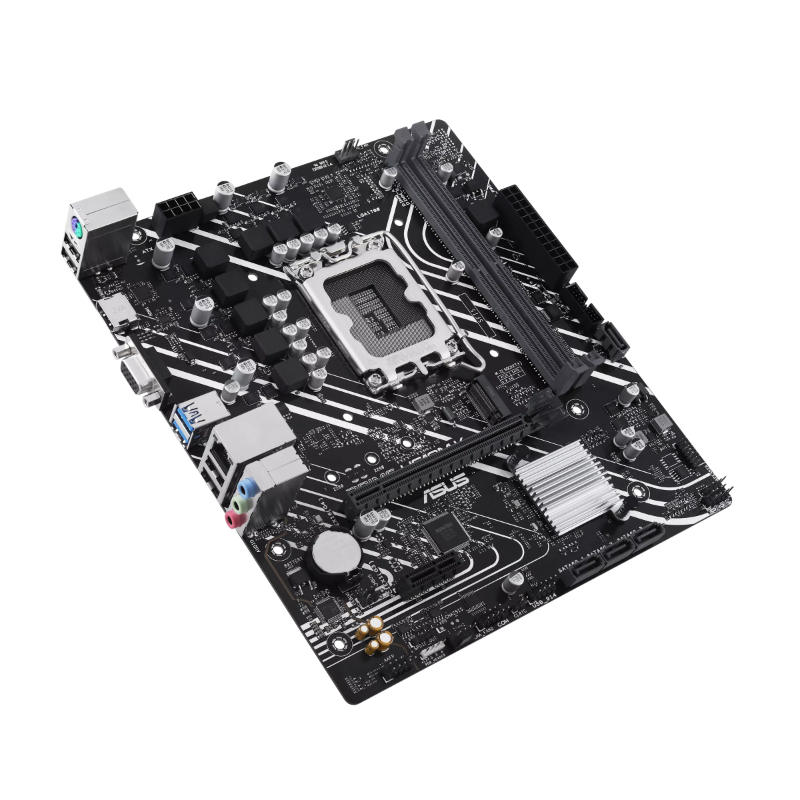

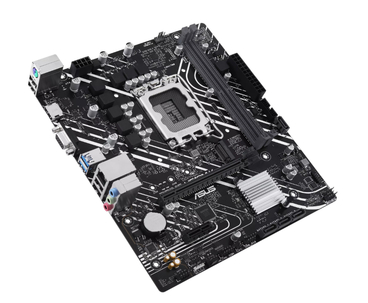

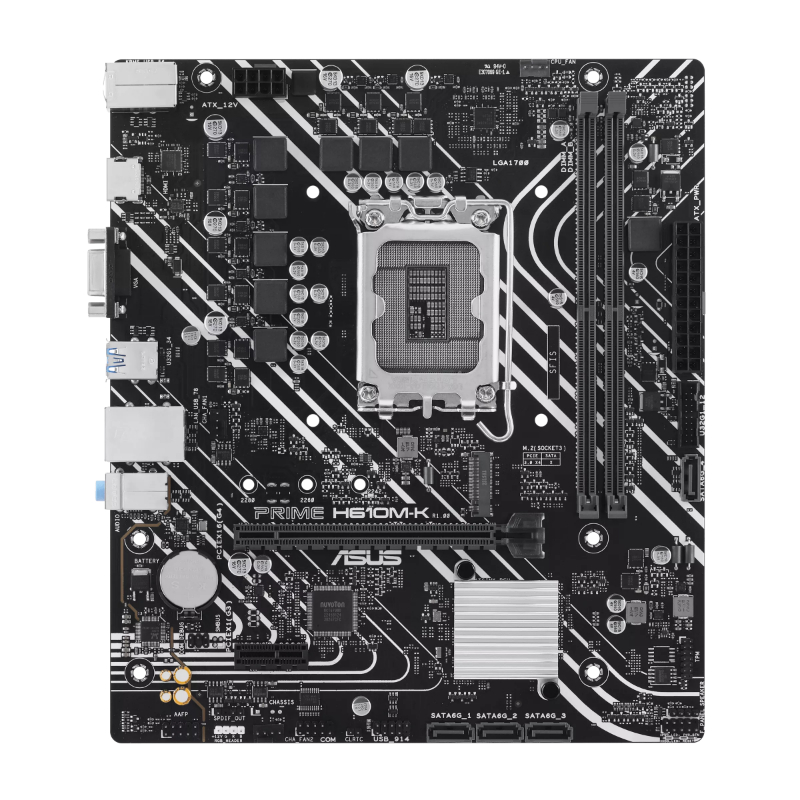

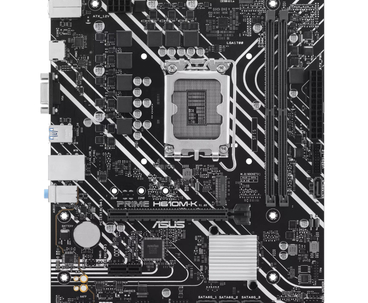

PLACA BASE PRIME H610M-K ASUS

LGA1700/H610/ DDR5/ 1xHDMI, 1xD-SUB/ mATX

104,09€ PVP

Comprar

Con stock

● Chipset: Intel H610 ● Formato: Micro ATX ● Hdmi: Si ● Imagen Salida: Graficos en CPU, D-SUB, HDMI ● Memoria Maxima: 96GB ● Microprocesador Integrado: No ● Multi-Grafica: No ● Nº Bancos De Memoria: 2 ● Nº Conexiones SATA: 4 ● Nº USB 2.0: 4 Traseros, 2 Internos ● Nº USB 3.2 Gen1: 2 Traseros, 2 Internos ● Pci: 1 PCIe 4.0 x16, 1 PCIe 3.0 x1 ● Raid: No ● SATA 6Gb/S: 4 ● Socket: Intel LGA 1700 ● Soporta Optane: No ● Tecnologia De Memoria: DDR5 ● Tipo De Raid: No ● USB3.1 Interno: Si

ASUS

PN:90MB1GA0-M0EAY0

PLACA BASE PRIME H610M-K ASUS

LGA1700/H610/ DDR5/ 1xHDMI, 1xD-SUB/ mATX

104,09€ PVP

Comprar

Con stock

●Chipset: Intel H610
●Formato: Micro ATX
●Hdmi: Si
●Imagen Salida: Graficos en CPU, D-SUB, HDMI
●Memoria Maxima: 96GB
●Microprocesador Integrado: No
●Multi-Grafica: No
●Nº Bancos De Memoria: 2
●Nº Conexiones SATA: 4
●Nº USB 2.0: 4 Traseros, 2 Internos
●Nº USB 3.2 Gen1: 2 Traseros, 2 Internos
●Pci: 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
●Raid: No
●SATA 6Gb/S: 4
●Socket: Intel LGA 1700
●Soporta Optane: No
●Tecnologia De Memoria: DDR5
●Tipo De Raid: No
●USB3.1 Interno: Si

Zócalo Intel® LGA 1700: listo para procesadores Intel® de 13.ª y 12.ª generación
Conectividad ultrarrápida: PCIe 4.0, ranura M.2 de 32 Gbps, Realtek Ethernet de 1 Gb y USB 3.2 Gen 1
Refrigeración Integral: Disipador PCH y Fan Xpert 2+
5X Protection III: múltiples protecciones de hardware para una protección integral

Especificaciones:

CPU

Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® H610 Chipset

Memory

2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x VGA port
1 x HDMI™ port**
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

Intel® 13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel® H610 Chipset
1 x PCIe 3.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel® H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
4 x SATA 6Gb/s ports

Ethernet

1 x Realtek 1Gb Ethernet

USB

Rear USB (Total 6 ports)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 4 ports)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

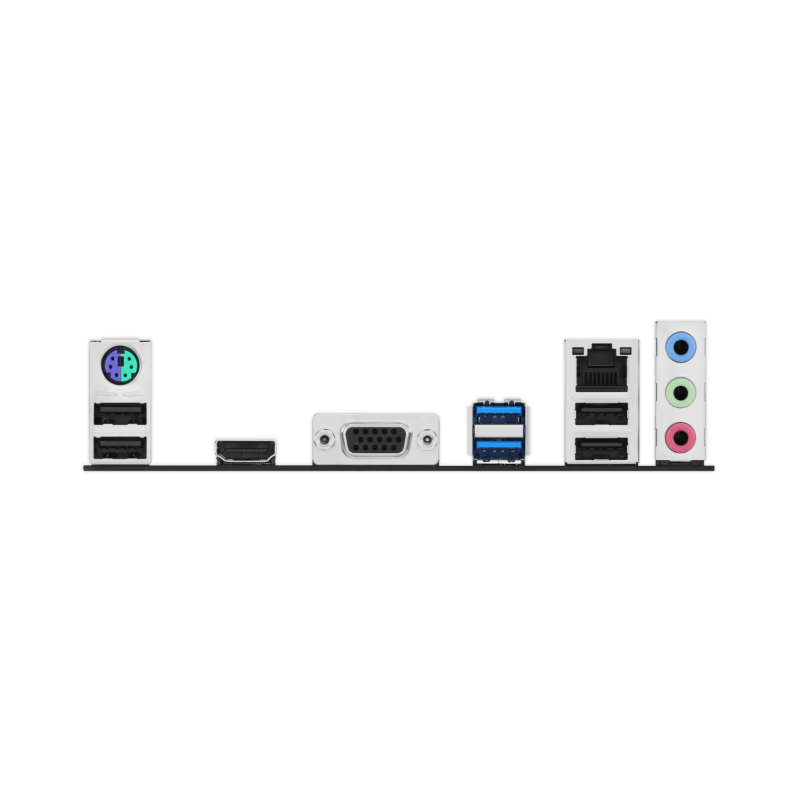

Back Panel I/O Ports

2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x VGA port
1 x HDMI™ port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
1 x RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x COM Port header
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Form Factor

micro-ATX Form Factor
9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )

PN:90MB1GA0-M0EAY0

PLACA BASE PRIME H610M-K ASUS

LGA1700/H610/ DDR5/ 1xHDMI, 1xD-SUB/ mATX

104,09€ PVP

Con stock

Las especificaciones e imágenes están sujetas a cambios sin previo aviso. Todas las marcas y logotipos son propiedad de sus respectivos fabricantes. La foto puede mostrar otros productos que se venden por separado.
